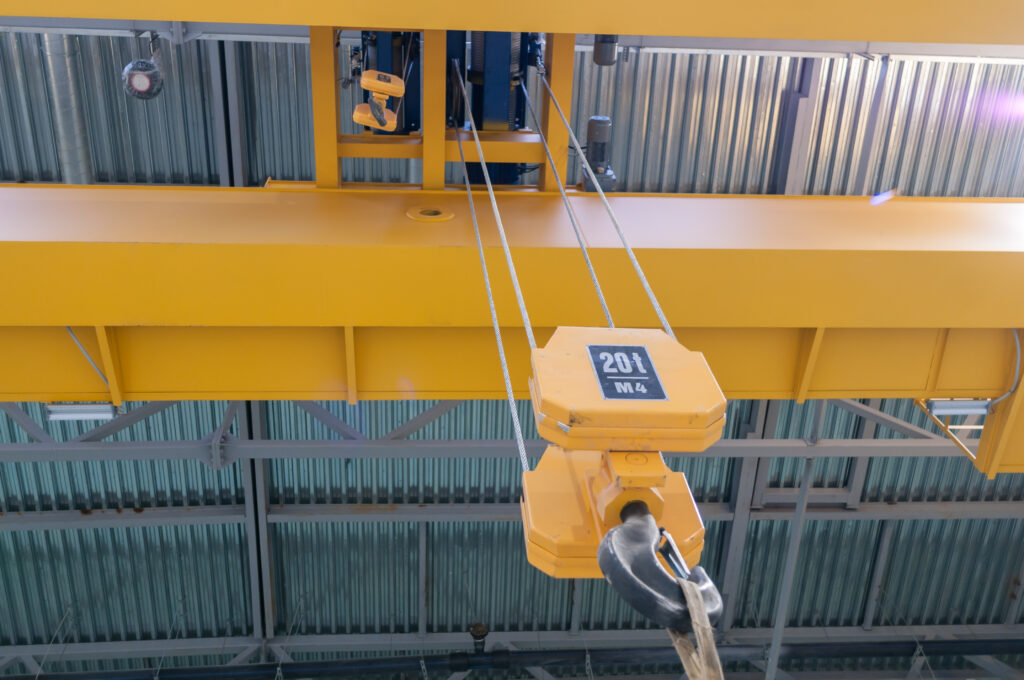

What Is a 5 Ton Gantry Crane and When Should You Rent One

A 5 ton gantry crane is a freestanding frame with a beam and a hoist that can lift up to 10,000 pounds. It is popular for short lifts, machine swaps, and tight indoor spaces where trucks and large mobile cranes cannot go. With the right rigging and a level floor, it is a fast and cost effective way to lift heavy loads with precision. If you are planning a machinery move, an HVAC changeout, or a plant maintenance lift, a 5 ton gantry crane rental may be the perfect fit.

American Erecting & Ironworks is a second generation, family owned company serving Racine, Kenosha, and Milwaukee counties and parts of Lake County, Illinois. Our team brings more than 30 years of experience in crane services, machinery moving, and steel erecting. We can help you assess whether a 5 ton gantry crane rental is right for your task or if a different solution will save time and reduce risk. Visit AEAIWI.COM for details.

Common Gantry Types and Features

Not all gantries are the same. Understanding the basic options helps you match the tool to the job.

• Fixed height gantries: Simple and rugged. Best when headroom and lift height are known and consistent.
• Adjustable height gantries: Telescoping legs allow you to raise or lower the beam to fit doors, ducts, and lights.
• Steel gantries: Higher capacity and durability. Heavier to move but very stable.
• Aluminum gantries: Lighter and easier to assemble by hand. Good for clean rooms and sensitive floors.
• Manual push travel: Operators push the frame on casters. Works well for short moves on smooth floors.
• Powered hoists: Electric chain hoists speed lifting and add precise control. Verify power access or use battery units.

Common Use Cases for a 5 Ton Gantry Crane Rental

Manufacturing and Plant Maintenance

Plants use 5 ton gantry cranes to swap motors, gearboxes, pumps, and press components. The gantry fits between machines and under overhead obstacles. It can travel a short distance to set the part on a cart or in place. American Erecting & Ironworks has supported maintenance teams across southeast Wisconsin with safe, efficient lift plans that keep production running.

HVAC Changeouts and Rooftop Equipment

When a full mobile crane is not practical, a 5 ton gantry crane can stage rooftop units, place air handlers inside mechanical rooms, or load units onto skids. For exterior lifts, plan for weather, load travel distance, and anchoring. Our crane services team can advise on when a truck crane is better for reach and speed and when a gantry is the smarter choice.

Machinery Moving and Equipment Installs

Machinery moving is a core service at American Erecting & Ironworks. We often pair a 5 ton gantry crane rental with forklifts or telehandlers to unload machines, tip them, and set them with precision. This approach reduces downtime and protects floors and equipment. We offer flexible scheduling, including weekends and holidays, to match your shutdown window.

Steel Erecting and Prefab Assembly

In a shop or on a slab, a 5 ton gantry crane can lift beams, columns, and trusses for fit up and welding. It is ideal for small structural assemblies and repetitive picks. Our steel sales team can supply beams and columns in Wisconsin and coordinate handling gear, so your job stays on schedule.

Marine, Vehicle, and Rail Maintenance

Gantry cranes handle engines, axles, and subassemblies for boats, trucks, and rail cars. The frame rolls over the work, then the hoist does the heavy lifting. For uneven ground, consider rail or track plates to spread wheel loads.

Construction Site Material Handling

On a flat slab, a gantry lifts rebar bundles, formwork, and precast panels within a defined area. It shines where a mobile crane cannot set up or where overhead lines limit boom work. Our NCCCO certified operators and riggers can support hybrid setups that combine gantries with mobile cranes when reach is needed.

Warehouse and Logistics

Use a 5 ton gantry crane to load dies, molds, and large pallets onto trucks or racking. Adjustable height frames let you clear doors and sprinkler mains while keeping a safe gap to the load.

Utilities and Energy

Water plants, substations, and wind service shops frequently use gantries to lift transformers, pumps, and gear cases. Controlled lifting is critical near energized equipment. Our team follows strict safety procedures to protect people and assets.

Capacity, Dimensions, and Clearance Basics

Rated Capacity vs Actual Load

A 5 ton gantry crane is rated for 10,000 pounds at a specific span and height. Never exceed the capacity on the manufacturer label. Add the weight of all rigging gear to the load total. Hooks, shackles, slings, spreader bars, and below the hook devices can add hundreds of pounds. Keep a 10 to 20 percent margin when possible to account for unknowns.

Headroom, Span, and Wheelbase

Measure the clear height from floor to the lowest obstruction. Allow room for the beam depth, trolley, hoist body, and hook travel. The clear lift height is often less than expected. Span is the distance between legs. Wider spans increase the wheel loads and change the capacity rating. The wheelbase affects turning and stability in tight aisles.

Floor Load and Wheel Loads

Casters concentrate force on small contact areas. Confirm the slab capacity and condition. Cracked or uneven floors reduce safety margins. Use steel plates or timbers to distribute wheel loads when needed. Do not cross gaps or floor drains with a loaded gantry unless you bridge them with proper mats.

Rigging Weight and Center of Gravity

Know the weight and shape of the load. The center of gravity must be below the hook and centered between the legs. If the center of gravity is off, use a spreader bar or two leg sling with an equalizer to balance. Always lift a few inches first and check for level before going higher.

Step by Step Load Planning for a Safe 5 Ton Gantry Lift

1. Define the load: weight, dimensions, pick points, and center of gravity.
2. Confirm the path: start point, travel distance, and set point.
3. Measure clearances: doorways, lights, pipes, ductwork, and sprinklers.
4. Check the floor: slab thickness, condition, slopes, and obstacles.
5. Select gantry type: fixed or adjustable height, steel or aluminum, span and height.
6. Choose the hoist: manual or electric, speed needs, power access.
7. Pick the rigging: slings, shackles, spreader bars, below the hook devices.
8. Calculate total load: item weight plus rigging and a safety margin.
9. Verify wheel loads: compare to floor capacity and plan mats if needed.
10. Assign roles: operator, signal person, rigger, and spotters.
11. Plan communication: hand signals, radios, and a stop signal.
12. Perform a test lift: raise 2 to 3 inches, check level, and verify brakes.

Document your plan and review it with the team. American Erecting & Ironworks can help you build a simple lift plan that meets OSHA and ASME best practices. Our crews follow strict checklists and use proven methods that protect your people and equipment.

Example Load Plan Scenario

The Task

Move a 7,800 pound injection molding machine base from a loading dock into a production bay and set it on leveling pads.

Site Constraints

Door height is 12 feet. Sprinkler mains hang at 13 feet. The floor slopes 0.5 percent toward drains. Aisle width is 14 feet with two tight turns.

Plan Outline

Select an adjustable height steel gantry with 5 ton capacity at a 16 foot span. Set the beam height to clear the machine by 10 inches and maintain 6 inches to the sprinklers. Use an electric chain hoist with a 20 foot lift and a push trolley. Rig with a spreader bar, two 10 foot synthetic slings, and 1 inch shackles. Place 3 by 6 foot steel plates at each turn to reduce caster compression and bridge small joints. Assign a lead rigger, one hoist operator, one signal person, and two spotters. Use radios and standard hand signals.

Risk Controls

Perform a test lift and verify level. Install wheel chocks when stationary. Keep a minimum 2 feet exclusion zone around the load. Pause at each turn to recheck rigging and caster alignment. Review emergency lowering steps before lifting. This plan stays within the 5 ton rating with a 15 percent margin and respects headroom limits.

Site Preparation Checklist

• Clear the path of debris, cords, hoses, and loose materials.
• Mark travel lanes and turning points with tape or cones.
• Measure door openings and remove threshold plates if needed.
• Place steel plates or timbers on weak spots and across drains.
• Verify lighting and remove low hanging items when possible.
• Confirm power availability for electric hoists or stage battery units.
• Stage rigging gear and inspect tags and capacities.
• Review the stop work authority with the crew.
• Notify nearby teams about the lift window.

Rigging Best Practices for 5 Ton Gantry Cranes

• Inspect slings and hardware before each use. Remove any gear with cuts, corrosion, or missing tags.
• Keep sling angles above 60 degrees when possible to reduce tension.
• Use a spreader bar for wide or delicate loads to avoid crushing forces.
• Place shackles with pins in single items and bows in slings to prevent side loading.
• Protect slings from sharp edges with pads or blocking.
• Balance the load and test lift a few inches to verify stability.
• Never ride the hook or allow anyone under a suspended load.
• Set the brake and chock wheels before detaching the load.

Permits, Codes, and Standards to Know

Safe lifting is more than equipment. It includes compliance and training. Follow OSHA general industry rules for material handling and powered equipment. Reference ASME B30.17 for overhead and gantry cranes, ASME B30.16 for hoists, ASME B30.9 for slings, and ASME B30.26 for rigging hardware. Keep operator and rigger training current. Document inspections and maintenance for the gantry, hoist, and rigging before use. If your work affects public sidewalks or streets, check local permit requirements. For floor load questions, consult a structural engineer or your building drawings.

5 Ton Gantry Crane Rental vs Other Options

Sometimes a gantry crane is best. Sometimes a mobile crane, forklift with a rigger boom, or a rough terrain telehandler is faster and safer. American Erecting & Ironworks operates a fleet of late model cranes, forklifts, and telehandlers. We can help you compare cost, time, and risk so you choose the right tool. If a 5 ton gantry crane rental is not ideal, our crane services or machinery moving crews may be a better fit. We build plans that minimize downtime and protect your facility.

Why Work With American Erecting & Ironworks

Local Experience You Can Trust

Based in Racine at 2108 Clark St, American Erecting & Ironworks has been serving southeast Wisconsin since 1991. We are family owned and focused on safety and service. Our NCCCO certified operators and experienced riggers deliver reliable results on every lift.

Flexible Equipment and Rentals

We offer well maintained rental equipment, including forklifts with or without rigger booms, rough terrain telehandlers, and genie boom lifts. Contracts are available daily, weekly, monthly, or on extended terms. If you need a 5 ton gantry crane rental, our team can help you evaluate the option and coordinate the right equipment for your site and schedule. Visit AEAIWI.COM to learn more.

Full Service Support

Our services cover crane work, machinery moving, and steel erecting. We also supply steel beams and columns in many sizes for building projects within Wisconsin. Whether you need a single pick or a full plant relocation, we can plan, lift, move, and set your equipment with care.

FAQs About 5 Ton Gantry Crane Rental

How much can a 5 ton gantry crane lift

Up to 10,000 pounds within the rated span and height. Always check the manufacturer chart for your specific model and configuration. Add rigging weight to your total.

Can one person move a 5 ton gantry crane

Many aluminum and small steel gantries can be moved by one or two trained people on smooth floors without a load. Never move a loaded gantry without proper controls and spotters, and never exceed caster ratings.

What power do I need for the hoist

Electric chain hoists may need 120V or 230V, single or three phase. Battery hoists are an option where outlets are not available. Manual chain hoists work without power but are slower.

What floor conditions are required

A flat, level, and solid surface is essential. Avoid slopes, cracks, drains, and debris. Use mats or plates when wheel loads approach floor limits.

Do I need permits

Indoor gantry use usually does not require a permit, but check facility rules. Work that affects public areas may require permits. Always follow OSHA and ASME standards.

How long does setup take

Setup time varies by size and type. Many 5 ton gantry cranes assemble in one to two hours with two to three people. Adjustable models take longer but offer more flexibility on site.

What if a gantry is not a good fit

American Erecting & Ironworks can provide alternative solutions like mobile cranes, forklifts with rigger booms, and telehandlers. We will recommend the safest and most efficient option for your job.

Safety Tips to Maximize Uptime

• Keep the path clear and dry to prevent caster slip.
• Do not side pull. Keep the hoist line vertical to the load.
• Lower the load fully before moving the gantry long distances.
• Use tag lines to control swing.
• Stow the hoist hook at a safe height when not in use.
• Lock out nearby equipment during the lift window.
• Hold a brief pre lift meeting to review roles and signals.
